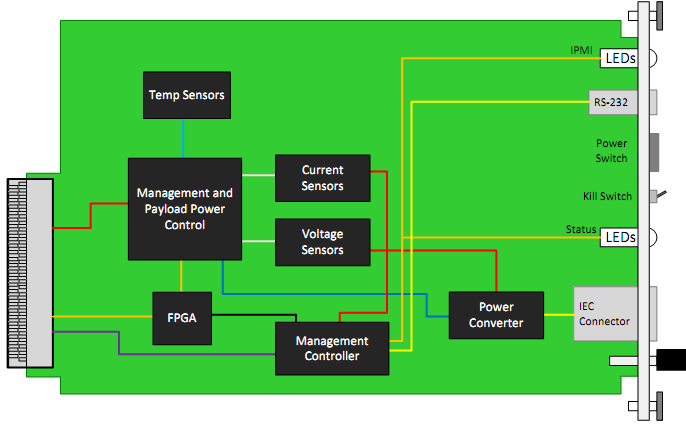

The VadaTech UTC017 is a 500W (42A @ 12V) power module for use in a μTCA chassis. It is fully compliant with the MicroTCA.0 revision 1.0 specification; including dual-redundant I2C buses (IPMB-0). The UTC017 is hot-swappable and fully redundant when used in conjunction with a second instance of the module. It provides power to the twelve slots, two MCHs (MicroTCA Carrier Hubs) as well as the CUs (Cooling Units). Multiple temperature sensors are included on-board to monitor for over-temp conditions within the module. The current is continuously measured for each of the modules and reported to MCH for any fault. Once installed in the system the firmware is upgradable via the shelf manager. The UTC017 can be configured to power and enable the modules without the presence of an MCH.
Key Features
ØDouble module, full size module per AMC.0
ØUniversal AC input (85-265 VAC), 500W
ØVery low ripple voltage on the +12V
ØHot swappable and support for power module redundancy
ØDual IPMI bus
Ø32-bit RISC processor
ØTwo banks of 256K flash for redundancy
ØBlue, Red, Amber and Green LEDs
ØField upgradable
ØIPMI 2.0 and HPM.1 compliant
ØWithout the presence of an MCH the modules can be turned on
ØMenu driven software for ease of configuration
ØCurrent measure for each module
ØAvailable in uTCA.1, uTCA.2 and uTCA.3
