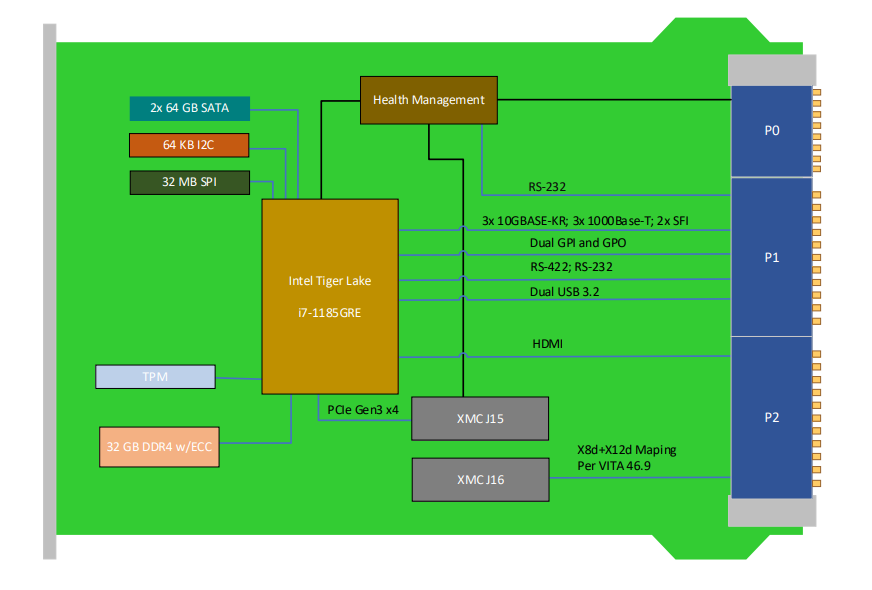

The VPX769 is based on Intel Tiger Lake i7-1185GRE in 3U VPX form factor. The module has triple 10GbE as 10G-BaseKR, triple GbE as 1000Base-T, dual USB3.2, 2x SFI, single RS-232, single RS-422 and dual GPIO to rear. The VPX769 comes with 32GB of DDR4 memory with ECC, and dual 64GB of SATA SSD for user storage. Further, an HDMI port is routed to the P2.
The module has a single XMC slot per ANSI/VITA 42.3 (XMC PCI Express) and routes the user I/O of XMC J16 as VITA 46.9 X8d+X12d to P2.
The module provides Serial Over LAN (SOL) to access the module serial port over IP.
Key Features
Based on Intel 11th Generation Core i7
VPX 3U based on Intel i7-1185GRE
32 GB DDR4 with ECC
Triple 10GBASE-KR and Triple 1GBASE-T to rear
2x SFI to rear
2x 64GB storage for user application
Dual USB3.2
ANSI/VITA 42.3 (XMC PCI Express)
XMC slot per VITA 42o
Serial Over LAN (SOL)
Conduction Cooled option available
Health Management through dedicated Processor
