The AMC772 is a Processor AMC (PrAMC) in a single module, mid-size Advanced Mezzanine Card (AMC) form factor based on the Intel® Processor Xeon® D-1746TER (Ice Lake-D) for general purpose processing in demanding embedded applications. The D-1746TER has 10 cores with three channels of DDR4 memory.
The AMC772 comes with 48GB of DDR4 memory with ECC and a M.2 NVMe storage. The BIOS allows booting from onboard Flash, PXE, and/or USB.

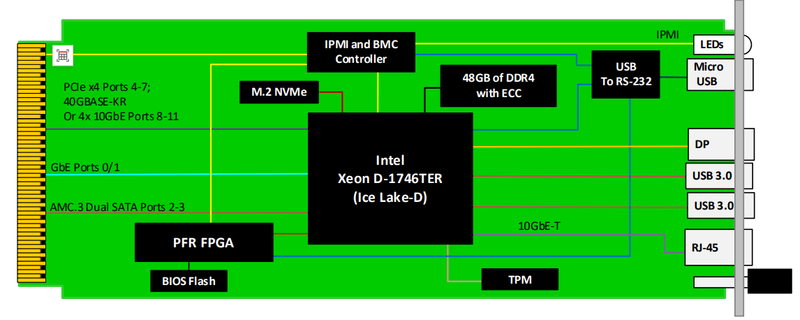

The Module provides PCIe on ports 4-7 and 40GbE and/or octal 10GbE on Ports 8-11 per AMC.2, GbE on Ports 0/1 to the CPU, and SATA on Ports 2 and 3 per AMC.3. The Module also provides 10GbE-T on the front panel.
The module utilizes the Intel Bootguard PFR via on board FPGA and Trusted Platform Management (TPM). The FPGA can be reprogrammed by the customer to meet their security beyond what is provided by the PFR.There are dual USB 3.0 type C connectors for extended storage, peripherals, etc.
Linux OS is standard on the AMC772, consult VadaTech for other options.
Key Features
Processor AMC Intel® Ice Lake-D Processor Xeon® D-1746TER (Ice Lake-D)
PCIe on ports 4-7 and 40GbE and/or 4x 10GbE on Ports 8-11
Serial Over LAN (SOL)
48GB of DDR4 memory with ECC
NVMe M.2 Storage
Display Port (DP)
Platform Firmware Resilience (PFR) via on board FPGA for security
Trusted Platform Management (TPM)
Single module, mid-size with option for full-size or 8HP
