The AMC771 is a Processor AMC (PrAMC) in a single module, mid-size Advanced Mezzanine Card (AMC) form factor based on the Intel® Processor Xeon® D-1746TER (Ice Lake-D) for general purpose processing in demanding embedded applications. The D-1746TER has 10 cores with three channels of DDR4 memory.
The AMC771 comes with 48GB of DDR4 memory with ECC and 1TB of NVMe storage. The BIOS allows booting from onboard Flash, PXE, and/or USB.

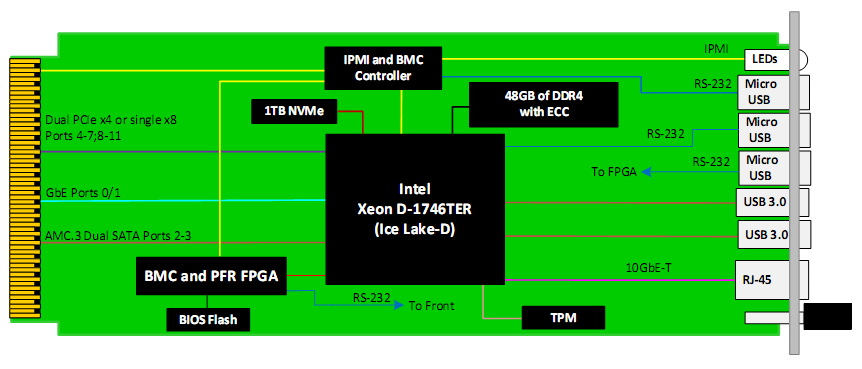

The Module provides dual PCIe x4 or single x8 on Ports 4-11 per AMC.1, GbE on Ports 0/1 to the CPU per AMC.2, and SATA on Ports 2 and 3 per AMC.3. The Module also provides 10GbE-T on the front panel.
The module utilizes the Intel Bootguard PFR via on board FPGA and Trusted Platform Management (TPM). The FPGA can be reprogrammed by the customer to meet their security beyond what is provided by the PFR.
There are dual USB 3.0 type C connectors for extended storage, peripherals and/or for external Display port.
Linux OS is standard on the AMC771, consult VadaTech for other options
Key Feature
Processor AMC Intel® Ice Lake-D Processor Xeon® D-1746TER (Ice Lake-D)
Dual PCIe x4 or single x8 on Ports 4-7 and 8-11
Serial Over LAN (SOL)
48GB of DDR4 memory with ECC
1TB of NVMe Storage
Platform Firmware Resilience (PFR) via on board FPGA for security
Trusted Platform Management (TPM)
Single module, mid-size with option for full-size or 8HP
