FMC234

The FMC234 is an FMC per VITA 57 specification. The board has a dual channelADC and single channel DAC.

TI ADC12DJ3200 ADC provides:

• Option for ADC12DJ2700

• 8 JESD204B lanes from the ADC is routed to the FMC

• 12-bit @ 6.4 GSPS

• Wide full power bandwidth supports IF sampling of signals up to 6 GHz

The ADC in non-interleaving mode can have two separate inputs each at 3.2 GSPS.

DAC AD9164 provides:

• Option for AD9162

• 16-bit @ 12 GSPS

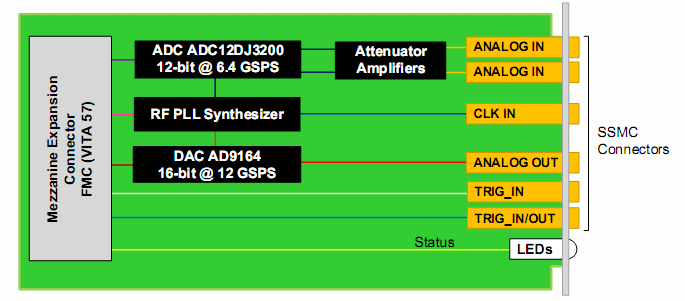

The analog input/output, clock and trigger interfaces of the FMC234 are routed viaSSMC connectors. The internal clock frequency is programmable and the clock iscapable of locking to an external reference.

The module allows one of the inputs to be configured as Trigger Input or Output.Further the ADC TMSTP signal input source could be configured to come from theFPGA or the Trigger In.
