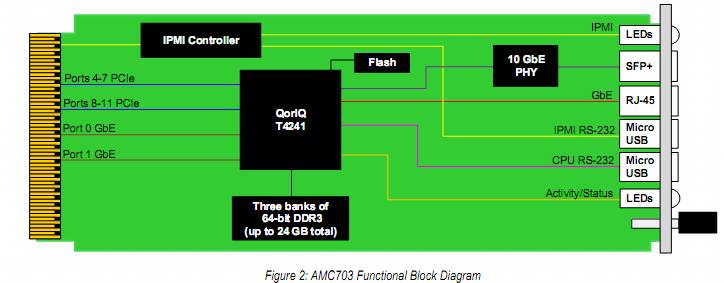

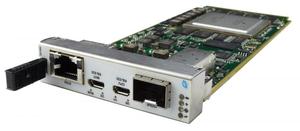

The AMC703 is a Processor AMC (PrAMC) based on the Freescale QorIQ T4241 in a single-module, mid-size AdvancedMCTM (AMC) form factor based on AMC.1 and the AMC.2 specifications.
The front panel provides access to GbE via a single RJ-45 connector and 10GbE via SFP+ connector.
The AMC703 provides dual GbE to the rear per AMC.2 specification on Ports 0 and 1. It has single GbE to the front. The module also provides PCIe on Ports 4-7 and 8-11.
Processor AMC with QorIQ T4241
Single-module, mid-size per AMC.0
Three banks of 64-bit DDR3 memory (up to 24 GB total)
Front panel has 10GbE via SFP+ and GbE via RJ-45
128 MB NOR Flash and 512 MB NAND Flash
24 virtual cores at up to 1.8 GHz
PCIe on Ports 4-7 and 8-11
