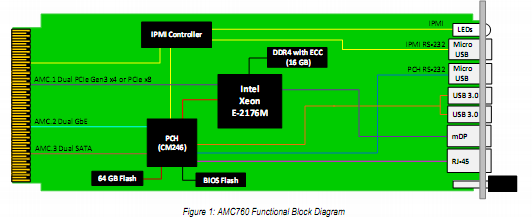

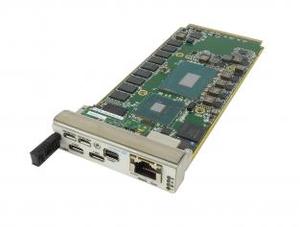

The AMC760 is a Processor AMC (PrAMC) in a single module, mid-size AdvancedMC (AMC) form factor based on the Intel® Xeon® Processor E-2176M (Coffee Lake) with CM246 PCH. The processor base frequency is 2.7 GHz with max turbo frequency of 4.4 GHz. The module follows AMC.1, AMC.2 and AMC.3 specifications.

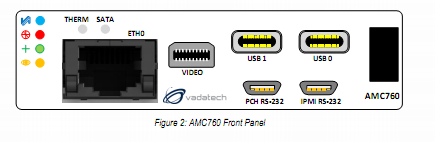

The module provides dual PCIe Gen3 x4 or single x8 on ports 4-11 per AMC.1, GbE on ports 0 and 1 per AMC.2, and SATA on ports 2 and 3 per AMC.3. It also provides GbE to the front panel.
The AMC760 has up to 16 GB of DDR4 memory with ECC and 64 GB of Flash for OS. The BIOS allows booting from on board Flash, off board SATA, PXE boot as well as USB. There are dual USB 3.0 type C connectors for extended storage or peripherals.
Linux OS is standard on the AMC760, consult VadaTech for other options.
Key Features
Processor AMC Intel® Xeon® Processor E-2176M (Coffee Lake)
PCIe Gen3 x4 on ports 4-7 and 8-11 or single PCIe x8 on ports 4-11 (AMC.1)
Serial Over LAN (SOL)
16 GB of DDR4 memory with ECC
64 GB of Flash memory
Single module, mid-size (option for full-size) per AMC.0
