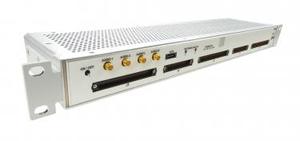

The VT985 is a 19” rackmount testing module for IBERT testing theOpenVPX modules. The module is 19” x 4” compact design.

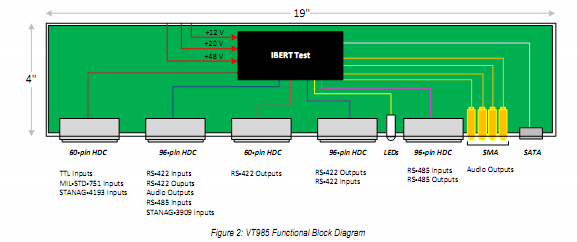

The module supports TTL inputs, MIL-STD-751 inputs, STANAG-3909inputs, STANAG-4193 inputs, RS-422 Input/output, RS-485 input/outputand audio output channels through a high density connector on the front.There are four additional SMA connectors to support audio channels.There is an on-board SATA loop back connector on the PCB.
The module can be supplied with +12 V, +20 V and +48 V powersupplies.
Key Features
19” Rackmount IBERT testing module
High Density Connector for TTL, MIL-STD-751,RS-422, RS-485, STANAG-3909 and STANAG-4193 I/O
SMA connectors for audio outputs
+12, +20 and +48 V power inputs
Power failure LEDs
