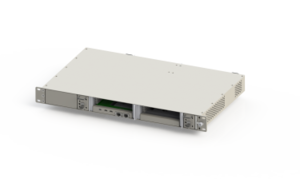

The VTX951 is a 1U Open VPX chassis with two 3U VPX payload slots. The chassis has integrated Intel® Xeon® Processor E3-1505M v6 (Kaby Lake) with CM238 PCH. The processor base frequency is 3.0 GHz with max turbo frequency of 4.0 GHz. The VTX951 has on board 64GB of Flash for OS and application. Further the chassis has an on board layer 2 manged switch. Each VPX modules connect to the CPU via PCIe x8 Gen3. The Chassis comes with VadaTech third generation Chassis shelf manager to provide health management
Power Supplies
The VTX951 has an AC input power supply to provide 500W. The chassis supplies 85W/slot and the AC input is universal.
Cooling and Temperature Sensors
The VTX951 provides right to left cooling to the VPX slots designed to meet ANSI/VITA 65 providing 18 CFM per slot at 0.24 in-H2O @ 5 kft. The VTX951 provides push/pull cooling to the RTM slots.
Backplane
The backplane provides two 3U VPX payload slots in a star configuration, fully compliant to VITA 46.0 baseline specification with additional support to the RTMs, compliant to VITA 46.10 and OpenVPX VITA65.
Key Features
1U Open VPX Rackmount platform
Intel® Xeon® Processor E3-1505M v6 (Kaby Lake)
Two 3U VPX payload slots
Serial Over LAN (SOL)
16 GB of DDR4 memory with ECC
TPM (Trusted Platform Module)
64 GB of Flash memory
Support for Rear Transition Modules (RTMs)
Removable fan tray
Shelf Manager for health management
Redundant cooling in push/pull side-to-side airflow configuration
