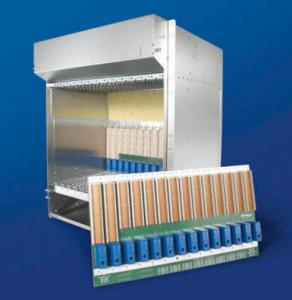

The VT825 utilizes the most successful design in the ATCA market, with over 15,000 global installs. The 13U chassis provides up to 14 front and RTM ATCA slots.
The backplane for the VT825 can be 10G or 40G Dual Star topology (Mesh is available upon request). Two PEM (Power Entry Modules) are standard with options for 4x for redundancy. The front air filter is removable and an EMC mat below the card cage helps to redirect airflow.
The chassis is NEBS compliant with front-to-rear airflow. The VadaTech shelf manager is standard, but other options are available.
Benefits
Base design has over 15,000 global installs
Fully NEBS compliant
Superior airflow distribution, even with a fan removed
Electrical, mechanical, software, and system-level expertise in house
Superior shelf management solution from VadaTech
Key Features
19" rackmount 13U ATCA Chassis
Conforms to PICMG 3.0 specification Rev.3.0
40G or 10G ATCA 14-slot backplane with Dual Star base and fabric (Full Mesh optional)
Full redundancy for all FRUs
Split power distribution (odd slots on A1/B1,even slots on A2/B2)
Superior cooling to 275W/slot (15U version available to 400W/slot)
14 Rear Transition Module (RTM) slots
