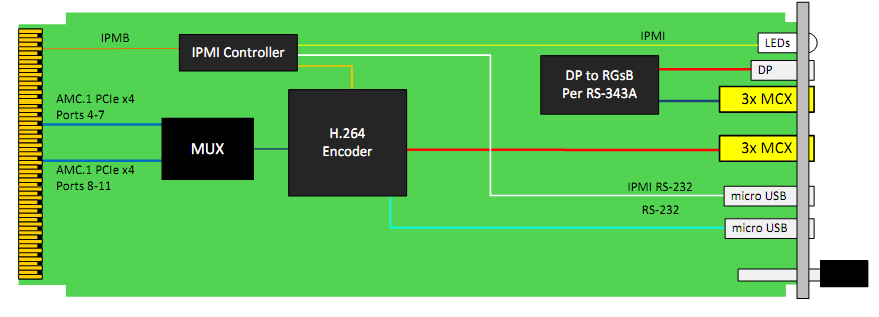

The AMC347 has RGsB and DP video inputs with an RGsB output. The module encodes the RGsB input to H.264 and provides data to the host over PCIe.
The module converts the DP input to RGsB output which is capable of driving UXGA video up to 110 feet over coaxial cable. The output characteristic being 1 VPP into 75 ohms per RS-343A which can drive a minimum of 110 feet.
The RGsB input/output connectors are 75 Ohms MCX style.
Note that the DP input is independent to the RGsB video input.
Key Features
RGsB Input to H.264 encode @ 60 Frame Per Second (FPS)
Max input resolution 1920x1200
Display Port (DP) input to RGsB output
Video outputs capable of driving 75 Ohms up to 110 feet (per RS-343A)
Max display resolution on the RGsB output 1600x1200 @ 60Hz
Encoded data is available via PCIe x4
