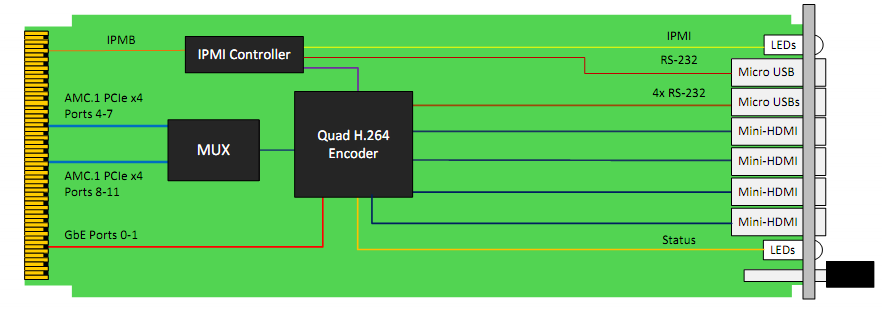

The AMC350 is an AMC form factor module with quad HDMI input. The module video encode engine can perform H.264, MPEG-4, and H.263 encoding up to Full-HD 1920x1088 @ 60 FPS resolution.
Encoding is compatible with the ITU-T recommendation H.264 recommendation specification. Minimum encoding image size is 96 pixels in horizontal and 16 pixels in vertical. The encoder rate control is designed for low low-delay and long-delay as well as macro block-level rate control to frame level rate control.
The MPEG4-SP encoder is compatible with the ISO/IEC14496-2 specification.
The encoded data is available via PCIe and/or GbE.
Key Features
Quad H.264 Encoder
HDMI digital video input
Encodes H.264, MPEG-4 and H.263 up to Full-HD
1920x1088 @ 60 Frame Per Second (FPS)
Encoded data is available via the PCIe or GbE
