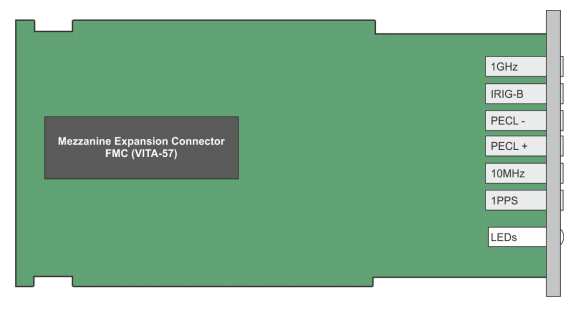

The FMC150 is an FPGA Mezzanine Module per VITA 57 specification. The FMC150 has a 1PPS, 10 MHz or IRIG-B input.
The FMC150 provides the signals to the FPGA from which the firmware will use the decoded IRIG-B data to set second’s year digits only.
The 3 inputs will be used along with front end parts, the FPGA and uP to control a time-decade clock that will have 16 BCD digits: 1 digit of the year of the decade, 3 digits of days, 2 digits of hours, 2 digits of minutes, 2 digits of seconds and 6 digits of microseconds.
Key Features
ØFPGA Mezzanine Card (FMC) per VITA-57
ØSingle-module
ØInput for 1PPS, 10 MHz or IRIG-B
ØModule or DC level shift IRIG-B per 200-04
ØEncode the year (2 digits) through second of the preceding 1PPS
ØRoHS compliant
