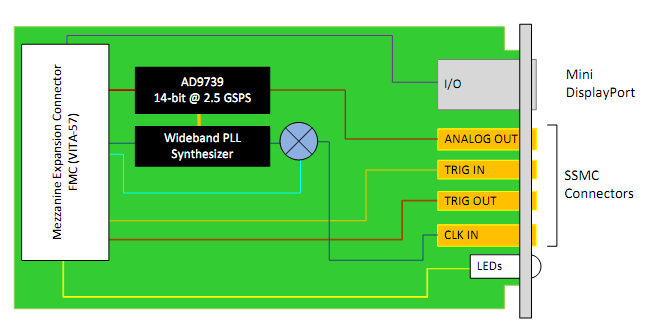

The FMC218 is an FPGA Mezzanine Module per VITA 57 specification. The FMC218 has a single DAC 14-bit at 2.5 GSPS. The DAC converter utilizes the Analog Devices AD9739. A wide band PLL allows for direct RF Clock synthesis via the front panel.
The FMC218 is designed for synthesizing of broadband signals, with enhanced linearity and band flatness performances. The Analog output can be programmed for +/- 1V
Key Features
ØFPGA Mezzanine Card (FMC) per VITA-57
ØSingle FMC size
ØSingle AD9739 DAC 14-bit at 2.5 GSPS
Ø2 Vpp differential Analog output swing
ØProgrammable DSP clock
ØDynamic performance
Ø8 QAM carriers @ 400 MHz IF –71 dBc
Ø16 QAM carriers @ 400 MHz IF –68 dBc
Ø32 QAM carriers @ 400 MHz IF –65 dBc
Ø72 QAM carriers @ 600 MHz IF –61 dBc
ØSingle tone NSD @ 2.4 GSP
Ø166 dBm/Hz @ 100 MHz IF
Ø162 dBm/Hz @ 1 GHz IF
ØConnection via MMCX
ØAnalog out
ØReference clock input
ØTRIG input
ØTRIG output
ØGPIO
