The FMC215 is an FPGA Mezzanine Module per VITA 57 specification that provides a single ADC at 4 GSPS and a single DAC at 4.5 GSPS. The module is suitable for signal capture and low-latency feedback applications such as COMINT/SIGINT, radar, jamming, research and instrumentation.
The FMC215 utilizes TI ADC12J4000 ADC providing 12-bit conversion at rates of 1.0 to 4.0 GSPS with a full-power input bandwidth of 3.2 GHz and offering configurable DDC (digital down conversion). The E2V EV12DS400 DAC provides 12-bit conversion at rates of up to 4.5 GSPS with output bandwidth up to 7 GHz.

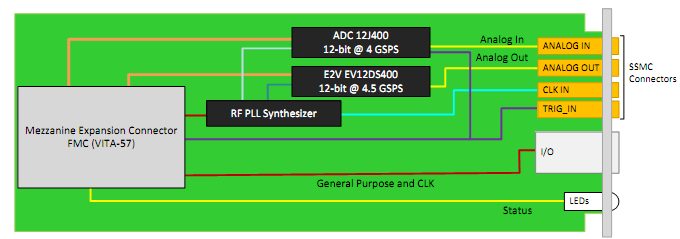

The FMC215 has a trigger input which is routed to the FMC connector as well as to the ADC.The analog input/output, clock input and trigger inputs are routed via SSMC connectors.
Key Features
ØFPGA Mezzanine Card (FMC) per VITA 57
ØTI ADC12J4000 ADC
ØE2V EV12DS400 DAC
ØExcellent dynamic performance
ØFront panel interface includes CLK In, Trig In, AnalogIn/Out, and GPIO
ØUltra Low-Noise wide-band PLL
ØOn-chip delay locked loops (DLLs) optimize timing between different clock domains.
