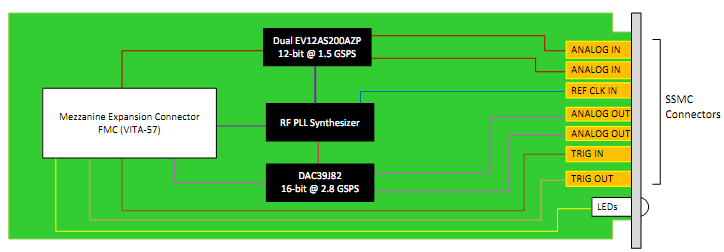

The FMC212 is an FPGA Mezzanine Card per VITA 57 specification with a high speed Dual ADC and dual DAC.
The ADC is based on e2v part number EV12AS200AZP which provides two Analog inputs with 12-bit resolution at 1.5 GSPS. The DAC is based on TI part number DAC39J82 which provides two Analog outputs with 16-bit resolution at 2.8 GSPS.
The Module has a wide-band PLL for RF sampling clock. The wide-band PLL has its RF reference clocking which can come from front panel, FMC Carrier or on board.
Key Features
Ø FPGA Mezzanine Card (FMC) per VITA-57
ØSingle module
ØDual ADC with EV12AS200AZP
Ø12-bit 1.5GSPS
ØFull power input Bandwidth at 1.5GSPS is 2.3GHz
ØVery low latency < 5Clock Cycles
ØDual DAC with TI DAC39J82
Ø16-bit 2.8GSPS
ØJESD204B 8 lanes
ØOn board wide-band PLL
ØRF clock input reference
ØTrig In/Out
ØRoHS compliant
