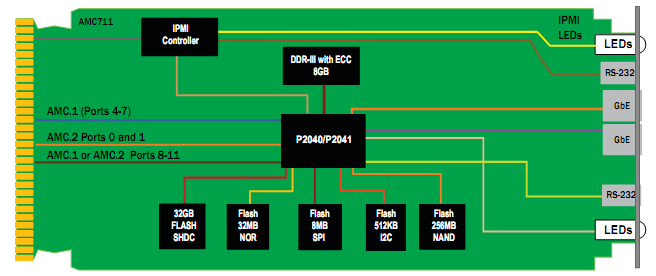

The AMC711 is a Processor AMC (PrAMC) in a single module, mid size AdvancedMC™ (AMC) form factor based on the Freescale P2040 or P2041. The module follows the AMC.1 and AMC.2 specifications. The PCIe interface is configurable as Host or Agent mode and it interfaces as dual x4 (ports 4-7 and 8-11). The P2041 has option to have ports 8-11 as XAUI (10GbE). The AMC711 has up to 8GBytes of DDR-III memory with ECC.
The AMC711 can provide single 10GbE via ports 8-11 with the P2041 option. The AMC711 has Serial Over LAN (SOL) with a true hardware Random Number Generator. The module provides Dual GbE to the rear per AMC.2 specification on ports 0 and 1 and dual GbE to the front.
Key Features
ØAMC with FreescaleTM QorIQ
ØP2040 or P2041
ØSingle module, mid size per AMC.0
Øoption for full size
ØPCIe Gen2 on ports 4-11 for P2040/P2041
ØP2041 option for XAUI on Ports 8-11
ØConfigurable as Host (Root Complex) or Agent
ØUp to 8GBytes of DDR3 memory with ECC
ØDual GbE per AMC.2 on ports 0 and 1 and on the front panel
Ø32Mbytes of NOR Flash and 256 Mbytes of NAND Flash
Ø8Mbytes of SPI Flash and 512KB of I2C Flash
ØUp to 32GB FLASH via SDHC for storage
ØIPMI 2.0 compliant
ØOS support for Linux and VxWorks
