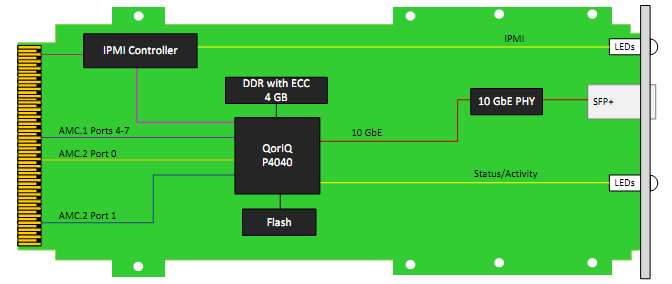

The AMC710 is a flexible processor AMC for general purpose processing with the quad-core QorIQ P4040 with Data Path Acceleration Architecture intended for router and UTM (unified threat management) applications.
XAUI is routed to ports 4-7 and a front-panel SFP+ supports 10 GbE, the unit architecture is balanced to provide a 10G front-to-back connectivity.
The module is available as AMC710 for air-cooled (MTCA.0 and MTCA.1) and as AMC710C for rugged conduction-cooled (MTCA.2 or MTCA.3) applications.
Key Features
ØSingle module, mid-size per AMC.0
ØConduction cooled version available
ØFreescale QorIQ P4040 processor
ØXAUI x4 on ports 4-7 (AMC.2)
ØSingle 10GbE SFP+ to the front panel
ØUp to 16 GB of DDR3 w/ ECC
ØSerial over LAN
ØIPMI 2.0 compliant
