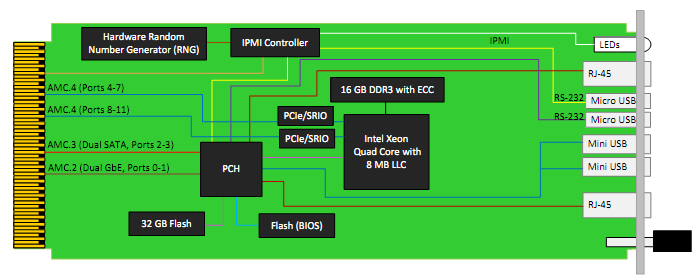

The AMC723 is a Processor AMC (PrAMC) in a single module, mid-size AdvancedMCTM (AMC) form factor based on an Intel® Core i Processor with an 8900 Series PCH.
The module follows the AMC.1, AMC.2 and the AMC.3 specifications. The module provides PCIe on ports 4-7 (AMC.1) and 10GbE on ports 8-11 per AMC.2, dual GbE on ports 0 and 1 per AMC.2, and SATA on ports 2 and 3 per AMC.3. PCIe Gen 3 is available on the Xeon E3 1125 v2 CPU option. The AMC723 also provides dual GbE to the front.
The AMC723 has option for up to 16 GB of DDR3 memory with ECC. It allows for up to 32 GB of Flash for the OS. The AMC723 has Serial over LAN with hardware Random Number Generator (RNG) as seed generator for authentication.
The BIOS allows booting from on board Flash, off board SATA, PXE boot as well as USB.
Linux OS is standard on the AMC723, consult VadaTech for other options.
Key Features
ØSingle module, mid-size per AMC.0
Øoption for full-size
ØProcessor AMC with Intel® Xeon™ with PCH
ØPCIe Gen2 x4 on ports 4-7 (AMC.1)
ØPCIe Gen3 is available on Xeon E3 1125 v2
ØCPU option
Ø10 GbE (XAUI) on ports 8-11 (AMC.2)
ØGbE to ports 0 and 1 (AMC.2)
ØSATA to ports 2 and 3 (AMC.3)
ØDual GbE to the front panel
ØUp to 16 GB of DDR3 memory with ECC
ØOption for up to 32 GB Flash
ØSerial over LAN
ØIPMI 2.0 compliant
ØRoHS compliant
