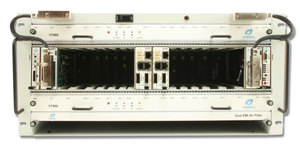

The VT860 is a 5U μTCA chassis that provides four AMC full size, six mid size and two compact slots that can accept any AMC.1, AMC.2, AMC.3 and/or AMC.4. It provides CLK1, CLK2, and CLK3 to each slot in addition to the JTAG signals. The VT860 has full redundancy. It’s capable of having redundant MCH, Power Modules, as well as redundant Cooling Units for high availability. There is an option for redundant/non-redundant clock per μTCA specification. The CLK3 option can be configured for the Fabric clock as well as Telcom clock. There is an option for Port 2 and 3 to be directly connected among the adjacent AMCs or to the fabric B (AMC.3 SATA/SAS switch option on the MCH). The chassis has a JTAG Switch Module (JSM) slot per μTCA specification. This provides transparent communication between the front JTAG port and the selected AMC device.The VT860 has a Telco Alarm as well as Redundant FRU information devices and carrier locators.
Benefits
Wide variety of MicroTCA Chassis Platforms
Design utilizes proven VadaTech subcomponents and engineering techniques
Electrical, mechanical, software, and system-level expertise in house
Key Features
5U μTCA System Platform
19” x 5U x 10.5” deep (with handles 12” deep)
Full redundancy with dual MicroTCA Carrier Hub (MCH), dual Cooling Units and dual Power Modules
Up to twelve AMCs: four full size, six mid size and two compact size
Dual star passive 26 layer backplane
Radial I2C bus to each AMC
Redundant FRU information devices and carrier locator
1000W AC Power supply option
Telco Alarm andJTAG Switch Module (JSM) slots with front port access
CLK1, CLK2 and CLK3
ESDJack at the top front
