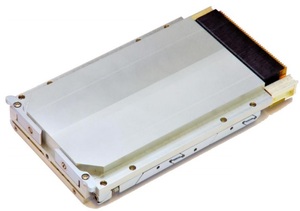

The VPX-D16A4-PCIE is a rugged high performance DSP/FPGA card in the compact VITA 65, 3U OpenVPX form factor. It is ideal for applications such as EW, SW radio, imaging or radar in harsh field deployment environments.

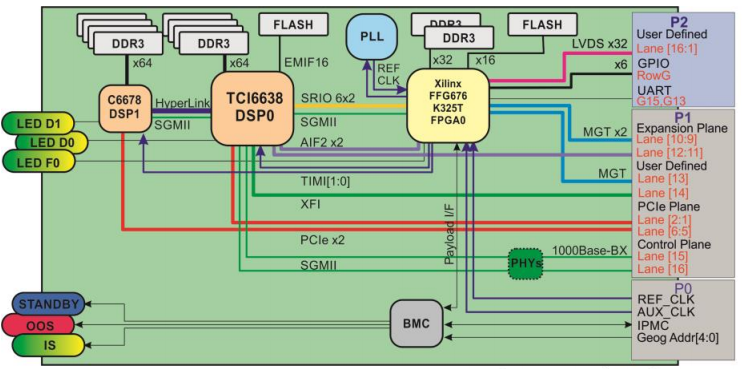

The card features 4x ARM A15 cores, 16x C66x+ DSP cores and various accelerators across two TI Keystone SoCs, each with its own large DDR3 memory bank and a 10Gbaud 2x PCIe link to the VPX backplane. They are closely coupled with the HyperLink bus. The main DSP has SRIO and CPRI links to a Xilinx Kintex-7 K325T FPGA, which has its own backplane MGT, LDVS, GPIO, serial ports and a flexible PLL, enabling I/O such as RF or ADC/DAC interfaces. All devices also have Gigabit Ethernet connectivity.
A full Linux BSP and example software support is provided to accelerate customer development, based on TI’s Linux and Multicore Software Development Kit and the Xilinx Vivado FPGA development suite. In addition, field proven LTE software from MIMOon is available integrated with the card.
Key Features
Form Factor:
3U OpenVPX card conforming to AV65-2010, 1” pitch and a payload profile of MOD3-PAY-2F2U-16.2.3-8
Rugged conduction or air cooled
Universal keying (unkeyed)
DSP0: Texas Instruments TCI6636/38 o66AK2H12/14 KeystoneII DSP/ARM SoC
4 x 1.4 GHz ARM A15 cores
8 x 1.2 GHz C66x DSP cores Wireless accelerators (TCI parts only)
2 Gbytes x64 DDR3-1600 SDRAM
256 Mbytes x16 boot FLASH
GigE to FPGA0, DSP1 and backplane
HyperLink to DSP1 at up to 50 Gbaud
2x 5Gbaud Gen2 PCIe to backplane
4x 5Gbaud SRIO, 2x AIF2 to FPGA
10 GigE XFI to backplane (TCI6638/66AK2H14 only)
DSP1: Texas Instruments TMS320C6678 Keystone DSP SoC
8 x 1.25GHz C66x DSP cores
2 Gbytes x64 DDR3-1333 SDRAM
GigE and HyperLink to DSP0
2x 5Gbaud Gen2 PCIe to backplane
FPGA: Xilinx Kintex-7 K325T
FFG676 package allows K160T to K41
1 Gbyte x32 DDR3-1600 SDRAM
256 Mbytes x16 FLASH; allows storage of multiple FPGA configuration images
3x MGT, 32x LVDS, UART to backplan
I2C from each DSP for register access
GigE to DSP0
