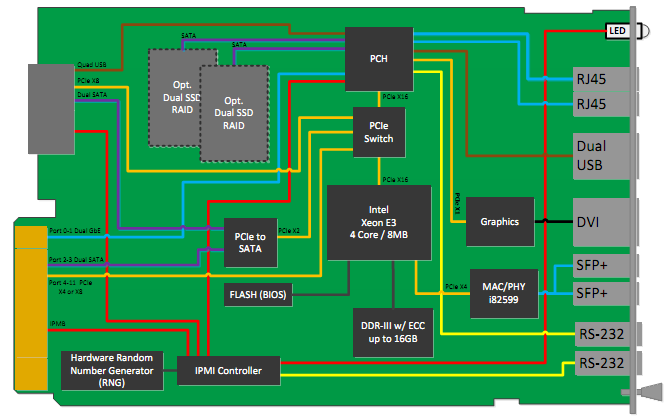

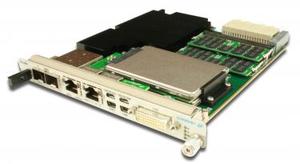

The AMC725 is a Processor AMC (PrAMC) in a µTCA.4 double-module, mid-size AMC form factor. It features an Intel® Xeon E3 Processor with Cave Creek PCH, and on-board dual RAID options. The module provides PCIe Gen2 x4 or single x8 on ports 4-11 per AMC.1, dual GbE on ports 0 and 1 per AMC.2, and SATA on ports 2 and 3 per AMC.3. Dual 10 GbE ports are included on the front panel.
The AMC725 comes with 16 GB of DDR3 memory with ECC. It routes PCIe, USB and SATA signals to the RTM connector for further expansion. The Serial over LAN with hardware RNG (Random Number Generator) acts as a seed generator for authentication. The BIOS allows booting from on-board Flash, off-board SATA, PXE boot, and USB.
Key Features
Øwith Graphics Interface
ØDouble-module, mid-size
Øper AMC.0 and MTCA.4
ØIntel® Xeon E3 (Gladden) 4C, 2 GHz
Ø8 MB LLC processor and Cave Creek PCH
ØDVI graphics (SM750 w/ 16 MB DDR)
Øup to 1920x1440 resolution
ØOptional up to 256 GB SSD with RAID option
ØPCIe Gen3 on ports 4-7 and 8-11 or single PCIe x8 on ports 4-11 (AMC.1)
ØGbE on ports 0 and 1 (AMC.2) and SATA on ports 2 and 3 (AMC.3)
ØPCIe Gen3 x8, dual SATA and quad USB to RTM
ØDual 10GbE via SPF+ and dual GbE via RJ-45 to front panel
ØUp to 16 GB DDR3 w/ ECC
ØIPMI 2.0 compliant
ØSerial over LAN (SOL) with hardware RNG
