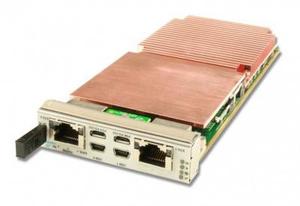

The AMC720 is a flexible processor AMC for general purpose processing. The AMC720 has quad-core Xeon and Linux support, it can act as system host and data processing engine. The dual front-panel GbE ports provide simple network connectivity, so while the unit is designed for embedded processing (i.e. typically without a monitor), it is straightforward to use with a virtual desktop on a remote PC/laptop for development and setup.
The AMC can be used in MicroTCA chassis from 2 to 12 slot, where virtual domain configurations can support multi-host implementations. The PCIe Gen3 option on the v2 processor allows the AMC to be used with the latest interface modules.
The BIOS allows booting from on-board Flash, on- or off-board SATA, PXE boot, and USB, providing flexibility in deployment model used.
The AMC720 is available in both air-cooled (MTCA.0 and MTCA.1) and rugged conduction cooled(MTCA.2 or MTCA.3) versions.

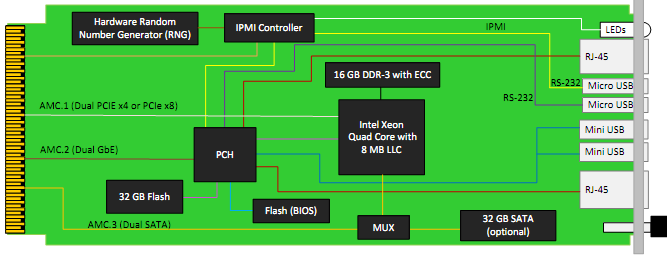

ØKey Features
ØIntel® Xeon™ E3 processor
ØConduction cooled version available
ØSingle module, mid-size per AMC.0
ØPCIe Gen2
ØGen3 on v2 option
Øx4 on ports 4-7 and 8-11 or single PCIe x8 on ports 4-11 (AMC.1)
ØGbE to port 0 and 1 (AMC.2) and SATA to port 2 and 3 (AMC.3)
ØDual GbE to the front panel
ØUp to 16 GB of DDR3 w/ ECC and 32 GB Flash
ØOption for 32 GB SATA drive
ØSerial over LAN
ØIPMI 2.0 compliant
