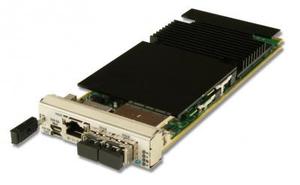

The AMC718 is a Processor AMC (PrAMC) in a single module, mid size AdvancedMC™ (AMC) form factor based on the Freescale P4040 and P4080. The module follows the AMC.1 and AMC.2 specifications. The PCIe interface is configurable as Host or Agent mode and it interfaces as x8 or dual x4. The module has option for up to 16GBytes of DDR3 memory with ECC.
The AMC718 provides Dual 10GbE via SFP+. The module provides Dual GbE to the rear per AMC.2 specification on ports 0 and 1 and a single GbE to the front which is muxed with port 1.
ØKey Features
ØProcessor AMC with Freescale™QorIQ
ØP4040 and P4080
ØSingle module, mid size per AMC.0
Øoption for full size
ØPCIe Gen2 on ports 4-11
ØConfigurable as Host or Agent
ØDual 10GbE with SFP+ interface
ØUp to 16GBytes of DDR3 memory with ECC
ØDual GbE per AMC.2 specification on ports 0 and 1
Ø32Mbytes of NOR Flash and 256 Mbytes of NAND Flash
Ø8Mbytes of SPI Flash and 512KB of I2C Flash
ØIPMI 2.0 compliant
ØOS support for Linux and VxWorks
