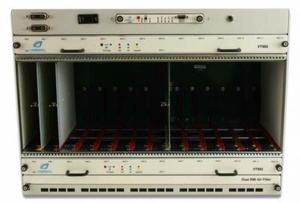

The VT892 is a 7U μTCA chassis that provides 12 AMC full size double module slots that can accept any AMC.1, AMC.2, AMC.3 and/or AMC.4. It provides CLK1, CLK2, and CLK3 to each slot. The VT892 has full redundancy. It’s capable of having redundant MCH, Power Modules, as well as redundant Cooling Units (CU) for high availability. The VT892 cooling is from bottom to top. There is an option for redundant/non-redundant clock per μTCA specification. The CLK3 option can be configured for the Fabric clock as well as Telcom clock. There is an option for Port 2 and 3 to be directly connected among the adjacent AMCs or to the fabric B (AMC.3 SATA/SAS switch option on the MCH). The 7U chassis has a Telco Alarm as well as Redundant FRU information devices and carrier locators. The VT892 has a JSM slot which routes to each JTAG port of the AMC.
Benefits
Bottom to top cooling
Design utilizes proven VadaTech subcomponents and engineering techniques
Electrical, mechanical, software, and system-level expertise in house
Full ecosystem of front and rear boards, enclosures, specialty modules, and test/dev products from one source
AS9100 and ISO9001 certified company
Key Features
7U μTCA System Platform
19” x 7U x 10.5” deep (with handles 12” deep)
Full redundancy with dual MicroTCA Carrier Hub (MCH), dual Cooling Units and dual Power Modules
Up to twelve AMCs: 12 full size double module
Radial I2C bus to each AMC
Dual Star passive 26 layer backplane
Redundant FRU information devices and carrier locator
1000W AC Power supply option
Telco Alarm
CLK1, CLK2 and CLK3
JTAG Switch Module (JSM) Slot
ESDJack at the top front
Cooling from bottom to top
