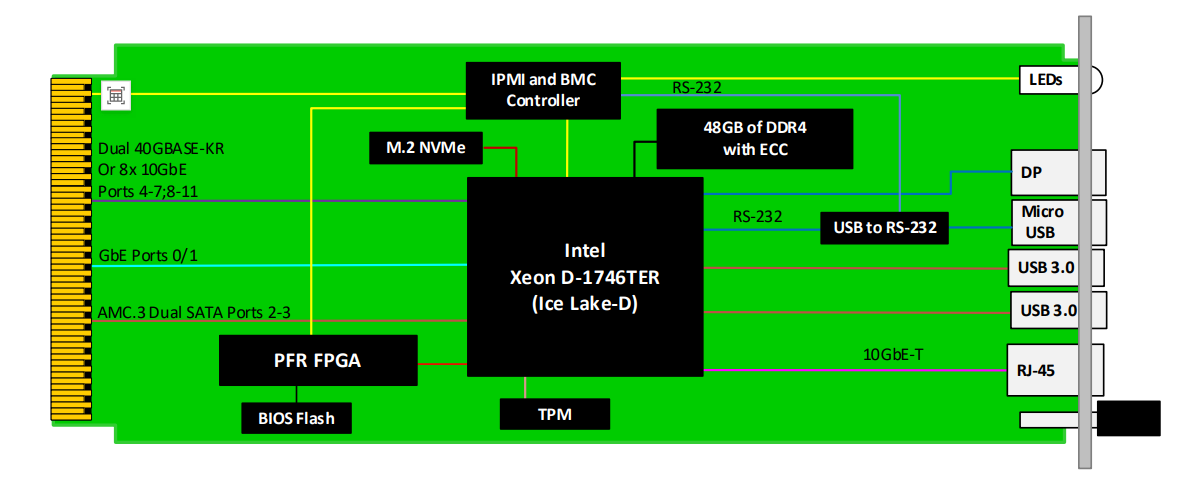

The AMC770 is a Processor AMC (PrAMC) in a single module, mid-size Advanced
Mezzanine Card (AMC) form factor based on the Intel® Processor Xeon® D-1746TER (Ice Lake-D)
for general purpose processing in demanding embedded applications. The D-1746TER
has 10 cores with three channels of DDR4 memory.
The AMC770 comes with 48GB of DDR4 memory with ECC and an NVMe M.2 storage.
The BIOS allows booting from onboard Flash, PXE, and/or USB.
The Module provides dual 40GbE and/or octal 10GbE (2x40G or 1x40G+1x10G or 8x10G,
module does not support 1x40G+4x10G) on Ports 4-11 per AMC.2, GbE on Ports 0/1 to
the CPU, and SATA on Ports 2 and 3 per AMC.3. The Module also provides 10GbE-T on
the front panel.
The module utilizes the Intel Bootguard PFR via on board FPGA and Trusted Platform
Management (TPM). The FPGA can be reprogrammed by the customer to meet their
security beyond what is provided by the PFR.
There are dual USB 3.0 type C connectors for extended storage, peripherals and/or for
external Display port.
Linux OS is standard on the AMC770, consult VadaTech for other options.
Key Features
Processor AMC Intel® Ice Lake-D Processor Xeon® D-1746TER (Ice Lake-D)
Dual 40GbE and/or 8x 10GbE on Ports 4-7 and 8-11
Serial Over LAN (SOL)
48GB of DDR4 memory with ECC
NVMe M2. Storage
Platform Firmware Resilience (PFR) via on board FPGA for security
Trusted Platform Management (TPM)
Single module, mid-size with option for full-size or 8HP
