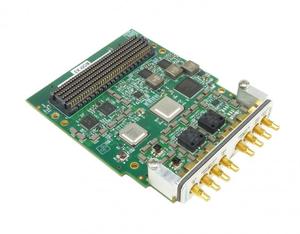

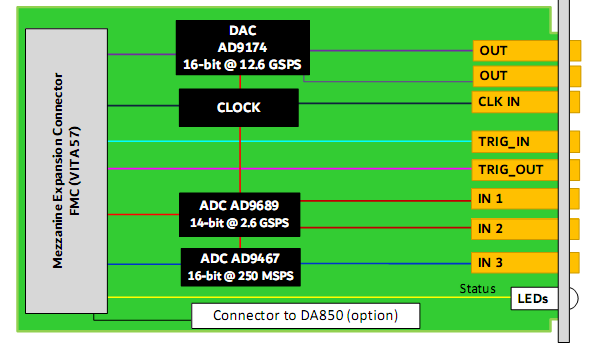

The FMC261 is an FMC per VITA 57 specification. The board has a dual channel high-speed ADC, dual channel high-speed DAC and single channel low-speed ADC.
The FMC261 utilizes AD9689 dual channel ADC providing 14-bit conversion rates of up to 2.6 GSPS and a Dual DAC utilizing the AD9174 providing 16-bit conversion rates of up to 12.6 GSPS. An additional ADC channel is provided by a single AD9467 which gives 16-bit conversion at up to 250 MSPS.
The module has a Trigger Input/Output, clock and all analog Input/Output via SSMC connectors.
Key Features
• Dual ADC 14-bit @ 2.6 GSPS (AD9689)
• ADC 16-bit @ 250 MSPS (AD9467)
• Dual DAC 16-bit @ 12.6 GSPS (AD9174)
• FPGA Mezzanine Card (FMC) per VITA 57
• Front panel interface includes Trig In/Out
• Clock input for synchronization via front or rear
• 2 x 22 Output and 2 x 2 Input single ended via a daughter card mate
