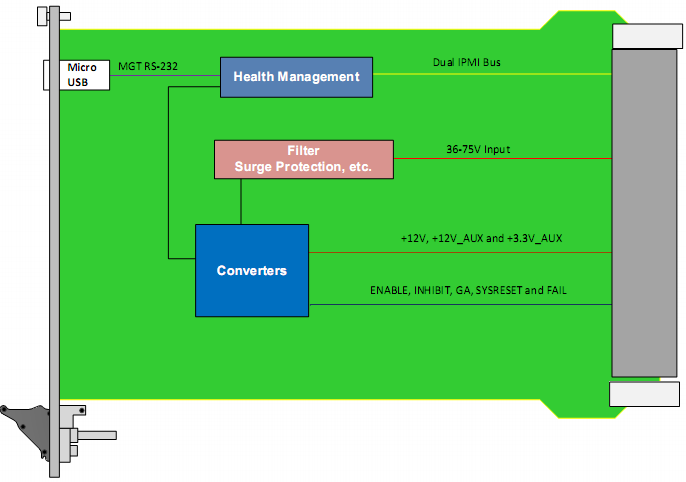

The VPX029 is a power module per VITA 62. The VPX029 is designed for 3U VPX systems and provides +12V, +12V_AUX and +3.3V_AUX to the backplane.
The module has dedicated health management per VITA46.11 and interfaces to the backplane using dual IPMI buses. The module has ENABLE, INHBIT, FAIL, Geographic address, and SYSRESET connections to the backplane.
The module is designed to meet the following MIL-STDs:
MIL-STD-704F
MIL-STD-461G
MIL-STD-810G
MIL-STD-1275E
Key Features
Power Module for Open VPX VITA 62
3U VPX Systems
600W Output Power (2KVdc input to output functional isolation)
Input voltage +36V to +75V (nominal +48V)
Available in Conduction Cooled
Meets Mil-STD-704F, MIL-STD-461G, MIL-STD-810G, MIL-STD-1275E
Health Management through dedicated Processor
