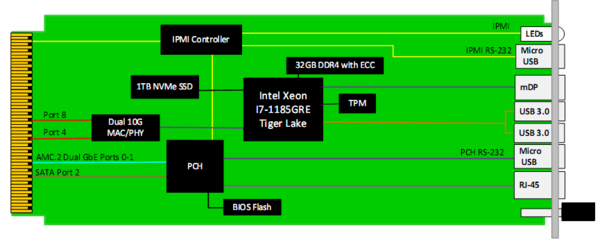

The AMC767 is a Processor AMC (PrAMC) in a single module, mid-size Advanced Mezzanine Card (AMC) form factor based based on the 11th Generation of Intel® Core™ i-7Processor i7-1185GRE (Tiger Lake). The processor base frequency is a quad core 1.8 GHz with max turbo frequency of 4.4 GHz.
The unit provides Dual 10G on ports 4 and 8, dual GbE on Ports 0 and 1 per AMC.2, and SATA on Ports 2. It also provides GbE to the front panel.
The AMC767 has up to 32GB of DDR4 memory with in-band ECC and 1TB of NVMe SSD for OS. The BIOS allows booting from onboard Flash, PXE, and/or USB.
The module provides TPM (Trust Management Platform) for secure boot.
Key Features
Intel® Core™ Processor i7-1185GRE (Tiger Lake)
10G on ports 4 and 8
Dual GbE to ports 0-1 and a GbE to Front
SATA on Port 2
Dual USB 3.2, Dual RS-232 and Mini Display Port (DP++) to Front
32GB of DDR4 with in-band ECC
1TB of NVMe SSD
TPM (Trusted Platform Management)
Health Management through dedicated Processor
Single module, mid-size (option for other size) per AMC.0
