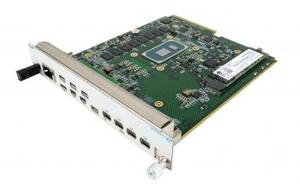

The AMC768 is a Processor AMC (PrAMC) in a double module, mid-size AdvancedMC (AMC) form factor based on the Intel® 11th Generation Core i-7 Processor i7-1185GRE. The processor base frequency is a quad core 1.8 GHz with max turbo frequency of 4.4 GHz. The module follows the AMC.1, AMC.2 and the AMC.3 specifications.
The module provides dual PCIe Gen3 x4 on ports 4-11 per AMC.1, GbE on ports 0 and 1 per AMC.2, and SATA on ports 2 per AMC.3.
The AMC768 provides quad DP++ ports, single GbE, USB2.0/3.2, Dual USB2.0 and three RS-232 to the front panel. The module also has a single M.2 NVMe storage option which connects to the CPU via PCIe x4 Gen4.
The AMC768 provides 32 GB of DDR4 memory with in-band ECC. The module has Serial over LAN (SoL) capabilities. The BIOS allows booting from on-board M.2, off-board SATA, PXE boot and USB. Linux OS is standard on the AMC768, consult VadaTech for other options.
PrAMC based on Intel® Core™ Processor i7-1185GRE (Tiger Lake, Quad Core)
32GB of DDR-3 with in-band ECC
On board M.2 NVMe Storage with PCIe x4 Gen4
Front panel Quad DP++
Front panel USB2.0/3.2 and dual USB2.0
Front panel GbE
Front panel three port RS-232
PCIe Gen3 x4 to ports 4-7 and 8-11
GbE to ports 0 and 1
SATA to port 2
Double module, mid-size (option for full-size) per AMC.0
