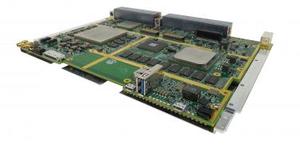

The VPX552 is a 6U VPX board with Kintex UltraScale™ FPGA and Intel® 5th generation Xeon 4-core, 8-core or 16-core Processor (Broadwell-D).
The efficient SoC design has low power consumption and integrated PCH technology. The processor has 32 GB of dual-bank DDR4 memory with ECC and Flash for the OS with Trusted Platform Management (TPM). The VPX552 has four 10GbE route to the rear via VITA 66.5 optical.
The BIOS allows booting from onboard Flash (SATA) or PXE boot of the OS via any of its Ethernet Ports.
The onboard FPGA is a Kintex UltraScale™ with 16 GB of dual-bank DDR4 Memory. High speed SERDES are routed to the rear (copper via P1 and P2, optical via VITA 66.5). GPIO signals are routed to the rear as LVDS and M-LVDS.
An XMC site is supported by PCIe x8 and has I/O routed to the rear per VITA 46.9 as xD12.
The health management is based on the VITA 46.11.
The unit is available in a range of temperature and shock/vib specifications per ANSI/VITA 47, up to V3 and OS2.
Please contact VadaTech for details of Conduction Cooled versions.
Key Features
Intel Broadwell-D integrated with Xilinx Kintex UltraScale™ XCKU115 FPGA
Intel® 5th Generation Xeon System-on-Chip (SoC)
CPU 32 GB of DDR4 with ECC
FPGA 16 GB of DDR4
XMC site
5 for optical to rear
Health Management through dedicated Processor
