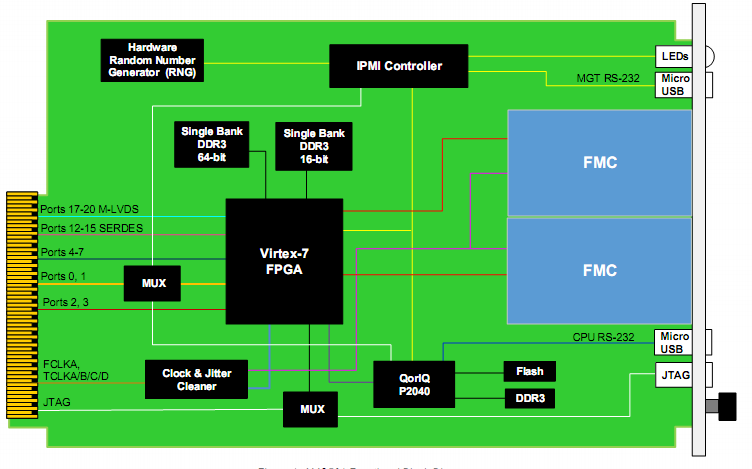

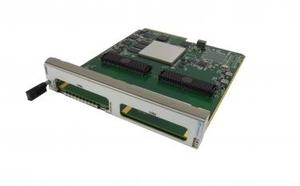

The AMC561 is an AMC FPGA Carrier with dual FMC (VITA 57) interfaces. TheAMC561 is compliant to the AMC.1, AMC.2 and/or AMC.4 specification. The unit has an onboard, re-configurable FPGA which interfaces directly to the AMC FCLKA,TCLKA-D, FMC DP0-9 and all FMC LA/HA/HB pairs. The FPGA has interface to DDR3 memory channels (64-bit wide and 16-bit wide).
Ports 12-15 support high-speed SERDES for direct board-to-board communication incompatible chassis, while Ports 17-20 support M-LVDS per MTCA.4.
The AMC561 has Dual FMC sites per VITA 57 allowing the versatility of various FMCmodules to be implemented.
The optional onboard quad core P2040 can run at 1.2 GHz with 1 GB of DDR3, 128MB of Boot Flash, and a 32 GB SD Card. The PPC has 4x PCIe interface to the FPGAin addition to its local bus. The PPC has its dual GbE routed to Ports 0 and 1 of the AMC via a mux to allow FPGA routing as well.
The AMC561 has Serial over LAN (SOL) per IPMI specification. It has a hardwareRNG for secure session.
Key Features
AMC FPGA carrier for Dual FPGA Mezzanine Card (FMC) per VITA 57
Xilinx Virtex-7 690T FPGA in FFG-1761 package
Double module, mid-size (full-size optional)
AMC Ports 4-7 are routed to FPGA per AMC.1, AMC.2 and AMC.4 (protocols such as PCIe, SRIO, XAUI, etc. are FPGA programmable)
AMC FCLKA, TCLKA, TCLKB, TCLKC and TCLKD are routed
M-LVDS to Ports 17-20 per MTCA.4
Option for onboard Freescale QorIQ PPC2040
Serial over LAN (SOL) with hardware Random Number Generator (RNG)
