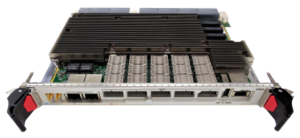

The VPX010 is part of the VadaTech family of 100G switches fully integrated with health management. This range are the most feature-rich VPX products on the market.
The management software is based on VadaTech’s operationally proven robust Carrier Manager and Shelf Manager. The MCMC manages the Power Modules, Cooling Units, and up to 12 payload modules within the chassis. It also manages the 100GbE switch.

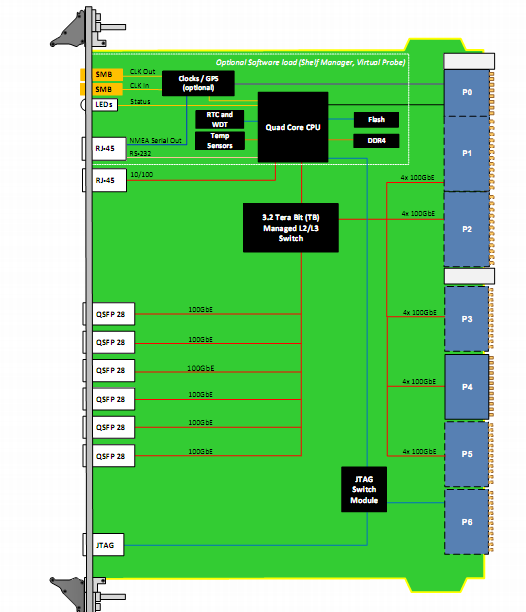

The Ethernet switch is managed with an enterprise grade Layer 2 or 3 switching/routing stack that supports IEEE1588 and Synchronous Ethernet. Each 100G port is configurable to run as 40GbE, as four 10GbE or four 1GbE. The switch has a throughput of 3.2 TB which allows each port to run at full 100G speed without any blocking.
The VPX010 runs Linux on its centralized quad-core CPU and is fully redundant when used in conjunction with a second instance of the module. The firmware is HPM.2 compliant which allows for easy upgrades.
The unit provides Master JTAG services to the payload modules via the JSM.
The VPX010 has advanced clocking features including grand master clock and high-quality clock distribution/synthesis.
