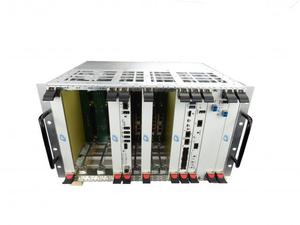

The VTX350 is an 6U VPX chassis with six 3U VPX slots. The chassis can accept 0.8-inch, 0.85-inch and 1.0-inch pitch modules. The chassis is ideal for field deployment.
Power Supplies
Contact VadaTech sales for details.
Cooling and Temperature Sensors
The VTX350 requires airflow to be provided by the cabinet. Contact VadaTech sales for details.
Backplane
The backplane provides eight 6U VPX payload slots, fully compliant to VITA 46.0 baseline specification with additional support to the RTMs, compliant to VITA 46.10 and OpenVPX VITA65.
JSM
Optional chassis manager (VPX980) can include JTAG Switch Module (JSM) with JTAG routed to payload slots.
Connector provision for external fiber optic I/O
Backplane provision for fiber via VITA 66.5
8 payload slots and provision for internal fiber optic management
Baffle provision to assist airflow balance across slots
