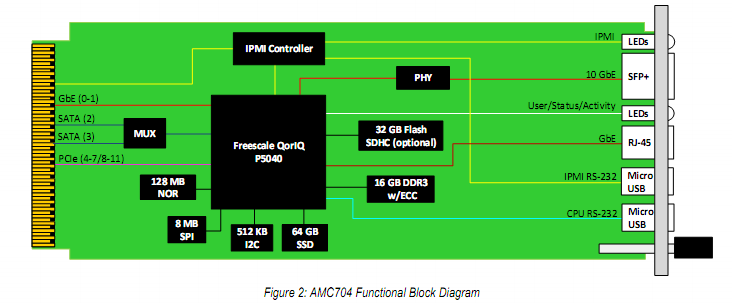

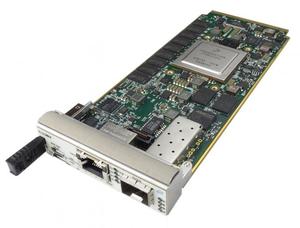

The AMC704 is a Processor AMC (PrAMC) in a single module, mid-size AdvancedMC (AMC) form factor based on the NXP P5040 (quad core) processors. The unit provides dual x4 PCIe on Ports 4-7 and 8-11 per AMC.1 and the PCIe interface can be configured in Host or Agent mode.
AMC704 has Dual GbE on Ports 0-1 per AMC.2 and routes single SATA to Ports 2 or 3 per AMC.3. The front panel provides GbE via RJ-45, 10GbE via SFP+ and RS-232 via Micro USB connectors.
It also has option for up to 16 GB of DDR3 memory with ECC, 32 MB NOR flash, 8 MB SPI flash, 512 KB I2C flash, 64 MB of SSD and optional 32 GB SDHC.
The module is also available for rugged conduction-cooled applications (MTCA.2 or MTCA.3).
PrAMC with NXP QorIQ P5040
Up to16 GB DDR3 with ECC
PCIe Gen2 on Ports 4-7 and 8-11 per AMC.1
Configurable as Host (Root Complex) or Agent
10GbE with SFP+ interface
Dual GbE per AMC.2 on Ports 0-1
SATA per AMC.3 on Ports 2 or 3
Single-module, mid-size per AMC.0
Option for up to 32 GB SDHC
64 GB of SSD on the module
Conduction Cooled option available
