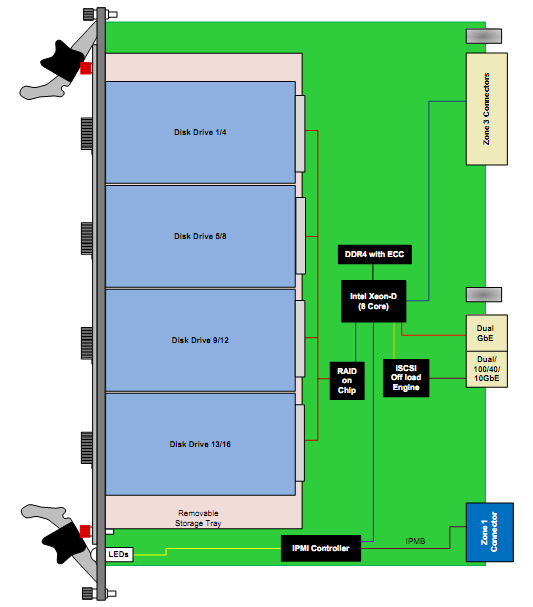

The ATC600 is an AdvancedTCA Network Attached Storage Blade with an on-board Intel Xeon-D processor (8 core) and a high-performance hardware off load engine for iSCSI Target, with an integrated back-end RAID storage subsystem.
The ATC600 has a dual 100/40/10GbE to the Fabric channel.
An advanced ROC co-processor off-loads the main CPU. The ROC features include RAID levels 0, 1, 5 and 6 with RAID spans 10, 50 and 60. In addition, the ROC checks for consistency of background data integrity and patrol read for media scanning and repairing. The ROC has an optional battery pack to prevent data loss in the event of a power failure, with options for NVMe or SAS/SATA SSD.
Auto resume after loss of system power during array rebuild or reconstruction, load balancing, check consistency for background data integrity. The RAID can be managed via a sophisticated GUI, running LSI MegaRAID software.
Internet Small Computer System Interface (iSCSI) and Network Attached Storage (NAS), could be Network File System (NFS) or Common Internet File System (CIFS)
Line rate iSCSI hardware off load engine at 40/10GbE (100G supported but not at the line rate)
Fully compliant with the IETF RFC3270 and RFC4171
RAID-on-Chip (ROC) dedicated I/O Processor off-loads the RAID stack
Redundant Array of Independent Disks (RAID) levels 0, 1, 5 and 6
RAID spans 10, 50 and 60
Battery pack option to prevent data loss
Utilizes VadaTech’s proven IPMI Management Controller
