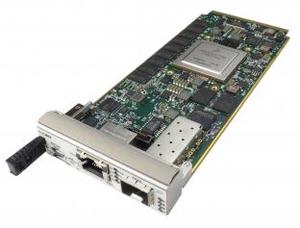

The AMC714 is a Processor AMC (PrAMC) in a single module, mid-size AdvancedMCTM (AMC) form factor based on the Freescale P5010 (single core) and P5020 (dual core) processors. The module follows the AMC.2, AMC.3 and AMC.4 specifications.
The module front panel provides GbE via RJ-45, 10 GbE via SFP+ and RS-232 via Micro USB connectors.
The module provides dual x4 SRIO on ports 4-11 per AMC.4 and dual GbE on ports 0 and 1 per AMC.2 to the rear. It routes dual SATA to ports 2 and 3 per AMC.3.
The module has option for up to 16 GB of DDR-3 memory with ECC, 32 MB NOR flash, 8 MB SPI flash, 512 KB I2C flash, 256 MB NAND flash and optional 32 GB SDHC.
The AMC714 has a Serial over LAN (SoL) with a true hardware Random Number Generator.
Key Feature
Processor AMC with Freescale QorIQ P5010/P5020
Up to16 GB DDR3 with ECC
SRIO on ports 4-7 and 8-11 per AMC.4
GbE per AMC.2
Front panel 10GbE via SFP+
Dual SATA per AMC.3
Single-module, mid-size per AMC.0
Option for up to 32 GB SDHC
