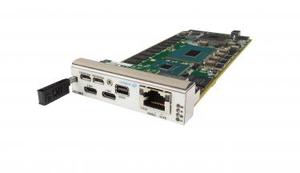

The AMC761 is a Processor AMC (PrAMC) in a single module, mid-size AdvancedMC (AMC) form factor based on the Intel® Xeon® Processor E-2176M (Coffee Lake) with CM246 PCH. The processor base frequency is 2.7 GHz with max turbo frequency of 4.4 GHz. The module follows the AMC.2 and the AMC.3 specifications.
The module provides dual 40 GbE or dual XAUI on ports 4-11 per AMC.2, dual GbE on ports 0 and 1 per AMC.2, and SATA on ports 2 and 3 per AMC.3. It also provides GbE to the front panel.
The AMC761 has up to 16 GB of DDR4 memory with ECC and 64 GB of Flash for OS. The BIOS allows booting from on board NAND, off board SATA, PXE boot as well as USB. There are dual USB 3.0 type C connectors for extended storage or peripherals.
Linux OS is standard on the AMC761, consult VadaTech for other options.
Key Features
Processor AMC Intel® Xeon® Processor E-2176M (Coffee Lake)
40GbE (or 10GbE) on ports 4-7 and 8-11 (AMC.2)
Serial Over LAN (SOL)
16 GB of DDR4 memory with ECC
64 GB of Flash memory
Single module, mid-size (option for full-size) per AMC.0
