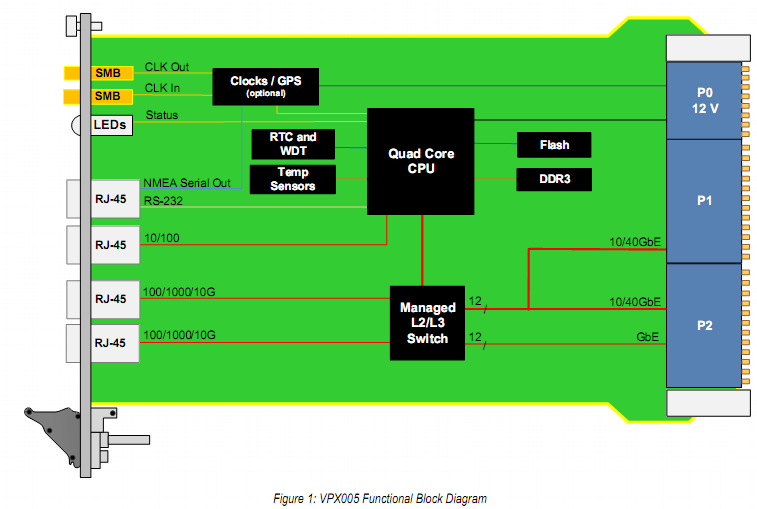

The VadaTech VPX005 is the most feature-rich VPX Switch with healthmanagement in the market. Its management software is based on VadaTech’srobust Carrier Manager and Shelf Manager which have been deployed for yearswith proven results. The MCMC manages the Power Modules, Cooling Units, andup to 12 payload modules within the chassis. It also manages the 10/40GbEswitch. The Ethernet switch is managed with an enterprise grade Layer 2 or 3switching/routing stack which supports Synchronous Ethernet.
The VPX005 runs Linux on its centralized quad-core CPU and is fully redundantwhen used in conjunction with a second instance of the module. The firmware isHPM.2 compliant which allows for easy upgrades. It provides Master JTAGservices to the payload modules via the JSM. The VPX005 has advanced clockingfeatures including grand master clock and high-quality clock distribution/synthesis.
Key Features
Unified 1 GHz quad-core CPU for, Shelf Manager, and Fabric management
Automatic fail-over with redundant VPX005

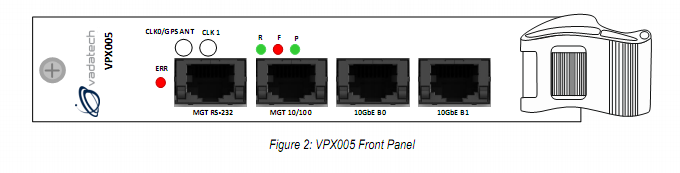

Dual 100/1000/10G uplink on the front panel
Full Layer 3 managed Ethernet switches
Non-blocking 10/40GbE
PLL synthesizer for generating any clock frequency disciplined to GPS/SyncE/IEEE1588
VITA 46 and VITA 65 compliant
