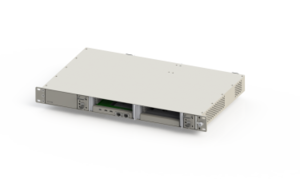

The VTX955 is a 1U Open VPX chassis with two 3U VPX payload slots.The chassis can accept 0.8-inch, 0.85-inch and 1.0-inch pitch modules.The chassis is ideal for commercial deployment.

Power Supplies

The VTX955 has an AC input power supply to provide 500W. The chassis supplies 85W/slot and the AC input is universal.

Cooling and Temperature Sensors

The VTX955 provides left to right cooling to the VPX slots designed tomeet ANSI/VITA 65 providing 18 CFM per slot at 0.24 in-H2O @ 5000feet. The VTX955 provides push/pull cooling to the RTM slots.

Backplane

The backplane provides two 3U VPX payload slots in a starconfiguration, fully compliant to VITA 46.0 baseline specification withadditional support to the RTMs, compliant to VITA 46.10 and OpenVPXVITA65.

Key Feature

• 1U Open VPX Rackmount platform

• Two 3U VPX payload slots

• Compatible with 0.8-inch, 0.85-inch and 1.0-inch modules

• Support for Rear Transition Modules (RTMs)

• Redundant cooling in push/pull side-to-side airflow configuration
