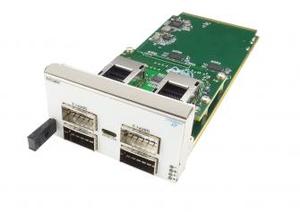

The AMC242 is an AMC form factor which routes 16 lanes from the backplane to the front. The module is agnostic to the protocol, any protocol such as PCIe, SRIO, 40GbE, 10GbE, GbE, Aurora, etc. could be routed between the backplane and the front panel.
The AMC242 has option for 4/8 SFP+ or 2/4 QSFP+. The QSFP+ ports have four lanes of TX/RX.
Key Features
Routing of ports 4-7, 8-11 , 12-15 and 17-20 to the front panel
Protocol agnostic
16 ports to the front panel
16 lanes to the backplane
Front-panel I/O via SFP+ or QSFP+ (ordering option)
Single-module, mid-size (option for full/extended size) per AMC.0
IPMI 2.0 compliant
