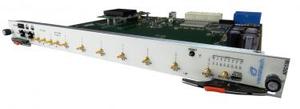

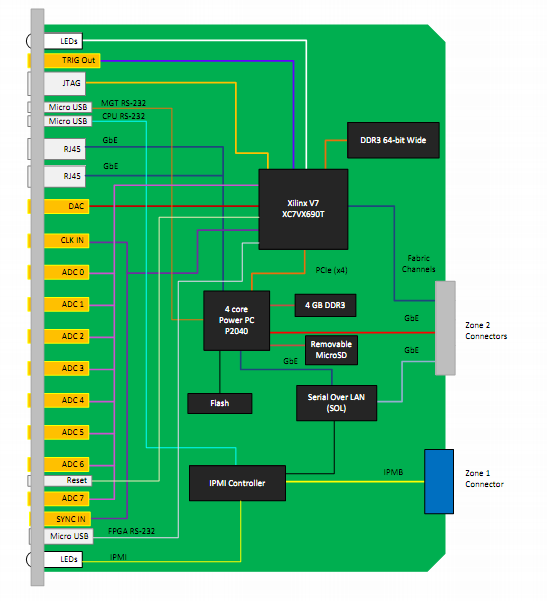

The ATC138 is an ATCA A/D converter based on the EV10AS150BADC, with eight channels at 10-bit resolution up to 2 GSPS. There is also single channel AD9129 DAC at 14-bit up to 2.8 GSPS, two reference Clock inputs and dual GbE via RJ-45. The carrier has a Xilinx Virtex-7 FPGA with an on-board QorIQ P2040 PowerPC for efficient performance and ease of configuration.
There is 64-bit DDR3 memory on the FPGA (4 GB) and the PPC (4 GB).The analog inputs are routed directly to the ADCs from the front panel.
The ATC138 provides a JTAG header on the front panel and three micro USB.
Key Features
Eight channel EV10AS150B ADC, 10-bit @ 2 GSPS
Single AD9129 DAC, 14-bit @ 2.8 GSPS
Xilinx Virtex-7 FPGA
Four core QorIQ P2040 Power PC
4 GB DDR3 memory to the PPC
4 Gb DDR3 memory to the FPGA
16 GB MicroSD card (removable)
JTAG port
CLK sync output via SSMC
