Essential features at a glance

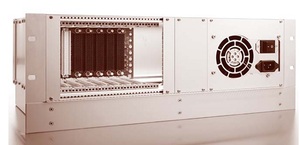

• 4 U / 84 HP VME64x system platform
• card rack acc. to IEEE 1101.1, 1101.10 / 11 and IEC 60297-3-101, -102, -103
• VPX hybrid backplane: 8 slots (3 x VME64x, 5 x VPX)
• 300 W PS2 (ATX) power supply
• Cooled by 3 fans (air flow from bottom to top)
• Completely assembled and wired
1 1 x VME64x card rack: cover / bottom plate perforated, executed
in aluminium, with IEEE guide rails and ESD clip mounted at
the bottom,
2 1 x VPX backplane: 3 U, 8 slots (3 x VME64x, 5 x VPX), based on VITA
46.0, 46.1, 46.3, 46.4 and 46.7
3 1 x Industrial PS2 power supply unit 300 W with wide range input
90 – 264 VAC (3.3 V / 28 A, 5 V / 35 A, 12 V / 22 A, –12 V / 1 A and min.
load: 5 V / 0.5 A, 12 V / 1 A) with PFC, with fan and switch, with
cable harness, incl. front panel 3 U / 32 HP
4 3 x DC fans: 119 x 119 x 32 mm, 108 CFM, 42.5 dB(A)
5 1 x Blanking plate 3 U / 12 HP *
6 1 x Blanking plate 3 U / 8 HP *
7 1 x Blanking plate 3 U / 84 HP *
* with EMC spring
