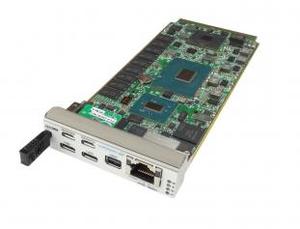

The AMC757 is a Processor AMC (PrAMC) in a single module, mid-size AdvancedMC (AMC) form factor based on the Intel® Xeon® Processor E3-1505M v6 (Kaby Lake) with CM238 PCH. The processor base frequency is 3.0 GHz with max turbo frequency of 4.0 GHz. The module follows the AMC.2 and AMC.3 specifications.

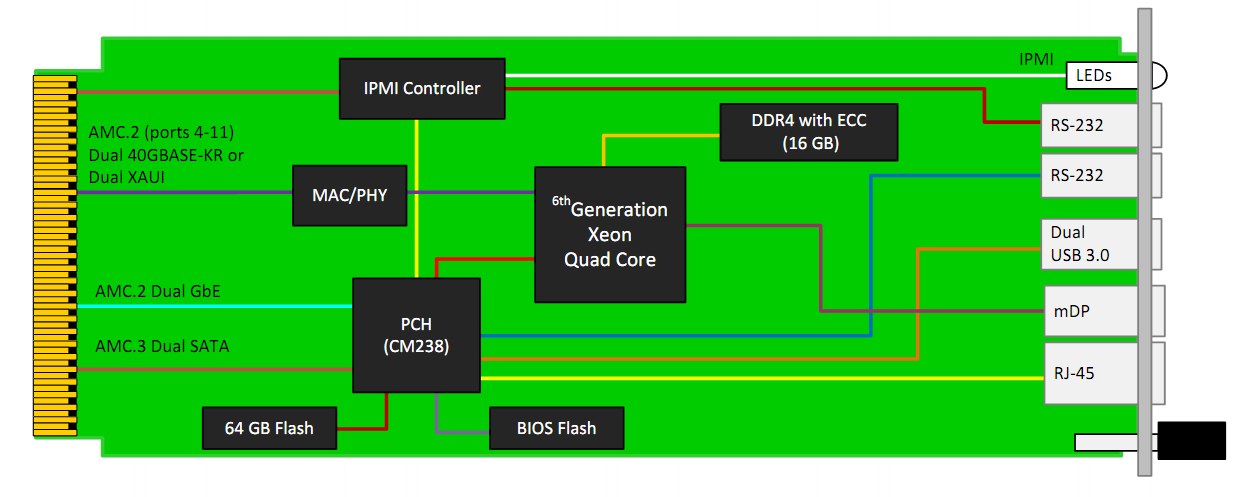

The module provides dual 40 GbE or dual XAUI on ports 4-11 per AMC.2, dual GbE on ports 0 and 1 per AMC.2, and SATA on ports 2 and 3 per AMC.3. It also provides GbE to the front panel.
The AMC757 has up to 16 GB of DDR4 memory with ECC and 64 GB of Flash for OS. The BIOS allows booting from on board NAND, off board SATA, PXE boot as well as USB. There are dual USB 3.0 type C connectors for extended storage or peripherals.
Linux OS is standard on the AMC757, consult VadaTech for other options.
Key Features
Processor AMC Intel® Xeon® Processor E3-1505M v6 (Kaby Lake)
40GbE (or 10GbE) on ports 4-7 and 8-11 (AMC.2)
Serial Over LAN (SOL)
16 GB of DDR4 memory with ECC
64 GB of Flash memory
IPMI version 2.0
Single module, mid-size (option for full-size) per AMC.0
