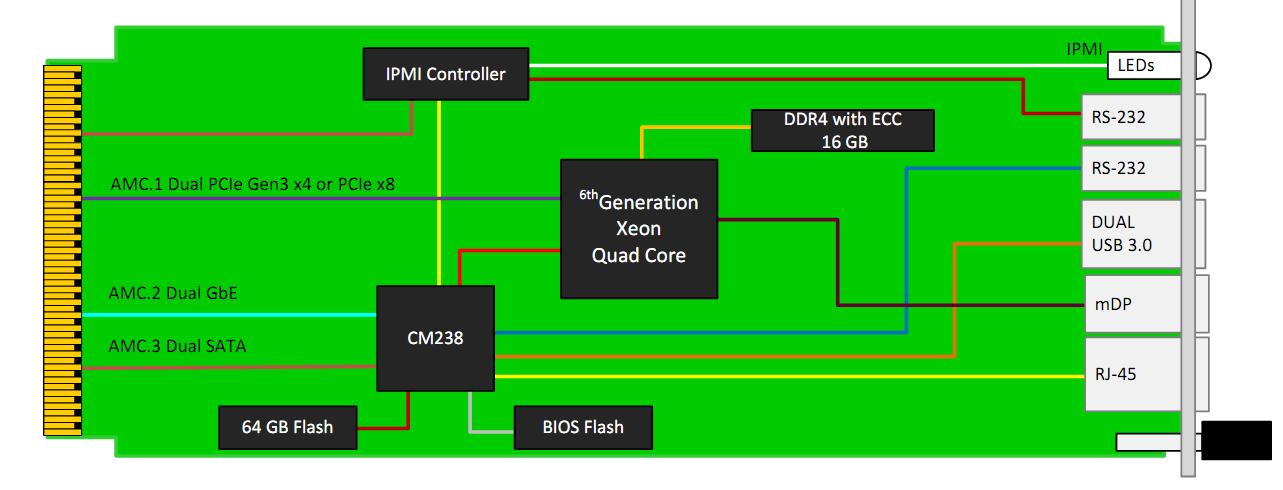

The AMC756 is a Processor AMC (PrAMC) in a single module, mid-size AdvancedMC (AMC) form factor based on the Intel® Xeon® Processor E3-1505M v6 (Kaby Lake) with CM238 PCH. The processor base frequency is 3.0 GHz with max turbo frequency of 4.0 GHz. The module follows the AMC.1, AMC.2 and the AMC.3 specifications.
The module provides dual PCIe Gen3 x4 or single x8 on ports 4-11 per AMC.1, GbE on ports 0 and 1 per AMC.2, and SATA on ports 2 and 3 per AMC.3. It also provides GbE to the front panel.
The AMC756 provides up to 16 GB of DDR4 memory with ECC and 64 GB of Flash for the OS. The module has Serial over LAN (SoL).The BIOS allows booting from on-board Flash, off-boardSATA, PXE boot and USB. There are dual USB 3.0 type C connectors for extended storage or peripherals.
Linux OS is standard on the AMC756, consult VadaTech for otheroptions.
Key Features
Processor AMC Intel® Xeon® Processor E3-1505M v6 (Kaby Lake)
PCIe Gen3 x4 on ports 4-7 and 8-11 or single PCIe x8 on ports 4-11 (AMC.1)
Serial Over LAN (SOL)
16 GB of DDR4 memory with ECC
64 GB of Flash memory
IPMI version 2.0
Single module, mid-size (option for full-size) per AMC.0
