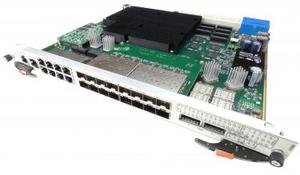

The ATC804 is ideal for broadband media servers or other applications requiring the versatility of a powerful 40GbE switch and provides 1.2 TBit throughput. The ATC804 has a single 1.2Tb switch which handles both the Base and the Fabric Channels. The Base and Fabric are separated by VLAN.

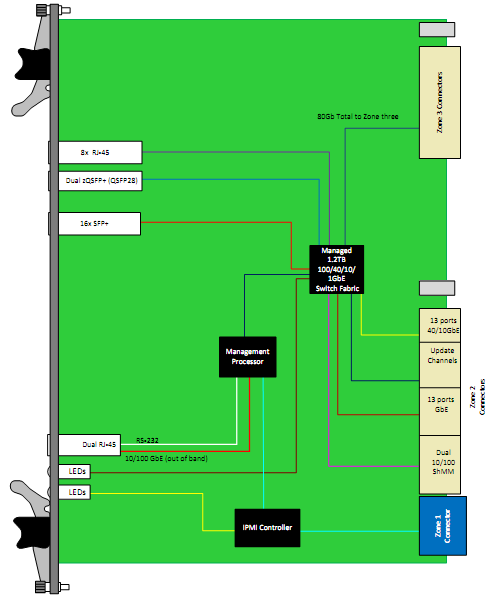

The Layer 3 managed 40GbE switch fabric routes 13 ports to each of the Fabric and Base Channels, two ports to the Update Channel, dual 100GbE ports to the front panel via zQSFP+ (QSFP28), 8 ports to the RTM, 16 ports to front-panel SFP+ and 8 ports to front-panel RJ-45 (10/100/1000Base-T). Switch management software features include Spanning Tree (+ Rapid), VLANs, GMRP, GVRP, Port Authentication, IGMP/Snooping Proxy, and Multi-cast Listener Discovery, etc. Each Fabric port could be configured as a single 40GbE/10GbE or as four 10GbE.
The ATC804 routes 80 Gb to Zone 3 which could divided between the combination of 10/1GbE ports. An RTM can be ordered separately to access the rear ports, contact VadaTech for details.
40GbE ATCA switch compliant to PICMG 3.1 specifications
Single switch for Base and Fabric Interfaces with VLAN separation
Dual zQSFP+ (QSFP28) Ports for 100GbE/40GbE
16 of SFP+ Ports on the front panel
8 of 10/100/1000Base-T Ports via RJ-45
Octal 10GbE/1GbE Ports to Zone-3
Layer 3 Managed Switch software
VadaTech’s proven IPMI Management Controller KEY FEATURES
