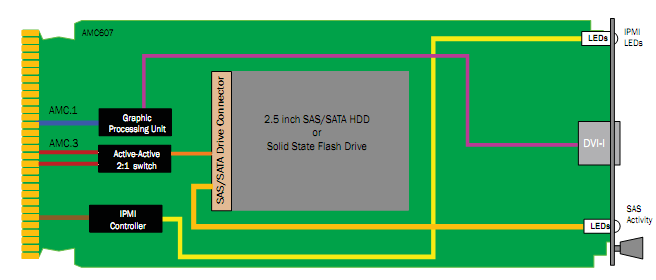

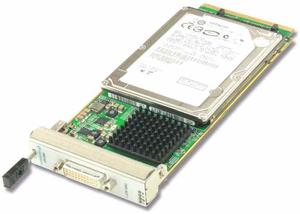

The AMC607 is a multi I/O adapter in the Advanced Mezzanine Card (AMC) form factor. The AMC607 combines a 2.5” SAS/SATA HDD, Graphic and Audio in a single module, mid size AMC form factor. The AMC607 is AMC.1 and AMC.3 compliant.The SATA hard disk drive can support data transfer rates of over 100 Mbyte/s and provides up to 320 GB of storagecapacity. Since SATA drivers are limited to a single host and cannot respond to multiple initiators, the Active-Active 2:1 Multiplexer device allows multiple hosts to access a single disk drive. This allows two hosts to access a single SATA drive. The AMC607 is also available with a Solid State Flash drive or SAS Drive.
Key Features
ØSingle module, mid size (full size option available)
ØPCIe x4 Lane
Ø2.5” SAS/SATA HDD
ØDVI-I Interface with 128MB of GDDR3
ØSupport of the latest high-resolution and wide-screen displays such as QXGA(2048x1536) @ 75Hz, 2560x1600 @ 60Hz
ØHDMI Connection for 480p, 720p, and1080i
ØMulti-channel 5.1 surround audio
ØOptimized for DirectX 10
ØAMC.1 and AMC.3 compliant
ØActive-Active 2:1 multiplexer switch
ØIPMI 2.0 compliant
ØRoHS compliant
ØOS support for:
ØLinux
ØWindows
ØSolaris
ØVxWorks
