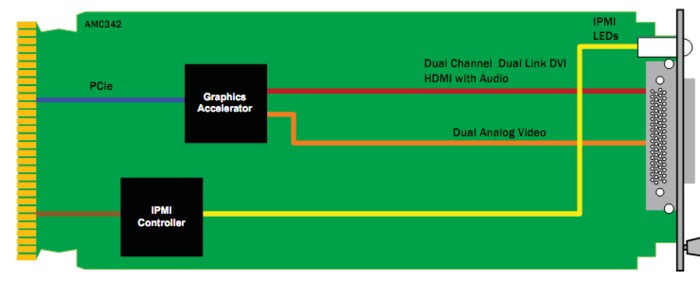

The AMC342 is VadaTech third generation AMC graphic module. Designed to meet the high performance real-world graphics needs of Military, Industrial and Telecom applications. The board features ATI’s graphics processor chipset which provides dual-channel Dual Link DVI/VGA and HDMI Video/Audio support with up to 512Mbytes of GDDR3 memory. The display mode supports high screen resolutions up to 3840x2400 @ 60 Hz. The AMC342 is AMC.1 compliant and is available in a single module, mid or full size AMC form factor. I/O connectivity is via front panel connector.
Key Features
ØSingle module, mid size (full size optional) graphics module
ØBased on ATI graphics processor chipset
ØProvides two separate high-performance Dual Channel Dual Link DVI or VGA Channels
ØHDMI Connection for 480p, 720p, and 1080i and 1080p
ØAMC.1 compliant, PCIe Gen2 x4 or x8 lanes
ØSupport of the latest high-resolution and wide-screen displays (3840x2400)
Ø512MB of GDDR3 Memory
ØAnalog Displays (VGA) 2048 x 1536
ØOptimized for DirectX 10.1
ØOptional “Y” adapter cable to convert the High Density Connector (HDC) to Dual Link DVI-I or VGA connectors
ØHDMI with Multi-channel 5.1 surround audio
ØIPMI 2.0 compliant
ØOS support for:
ØLinux
ØWindows
ØSolaris
