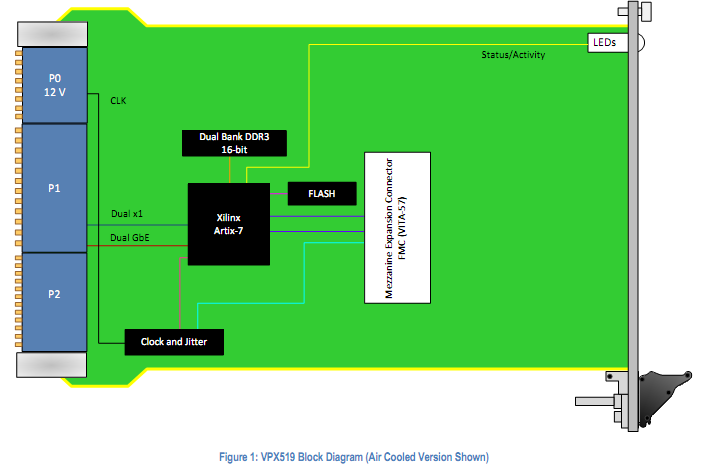

The VPX519 is a FPGA Carrier (VITA-46) with an FMC (VITA 57) interface.The unit has an on-board, re-configurable FPGA which interfaces directly to the FMC DP0-9 and all FMC LA/HA/HB pairs.
The FPGA has interfaces to two banks of DDR3 memory (14-bit wide) with a total memory of 512 MB. This allows for large buffer sizes to be stored during processing as well as for queuing the data to the host.The module supports dual GbE and, dependent on FPGA code loaded, PCIe up to Gen3 (dual x1), or dual SRIO on P1.The unit is available in a range of temperature and shock/vib
The module supports dual GbE and, dependent on FPGA code loaded, PCIe up to Gen3 (dual x1), or dual SRIO on P1.The unit is available in a range of temperature and shock/vib
The unit is available in a range of temperature and shock/vib specifications per ANSI/VITA-47, up to V3 and OS2.
Key Features
Ø3U FPGA carrier for FPGA Mezzanine Card (FMC) per VITA-46 and VITA-57
ØXilinx Artix-7 FPGA in FBG-676 package
ØHigh-performance clock jitter cleaner
ØVHDL reference design with source code
ØProtocols such as PCIe and GbE are FPGA programmable
ØCompatible with VadaTech and 3rd-party FMCs
