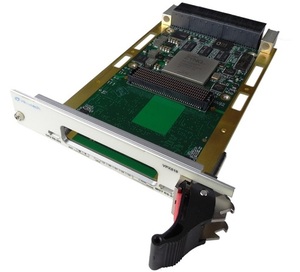

The VPX518 is a FPGA Carrier (VITA-46) with an FMC (VITA 57) interface.The unit has an on-board, re-configurable FPGA which interfaces directly to the FMC DP0-9 and all FMC LA/HA/HB pairs.
The FPGA has a single bank of 2 GB DDR3 memory (64-bit wide). This allows for large buffer sizes to be stored during processing as well as for queuing the data to the host.
The FPGA package includes an integrated SoC processor. The processor has a separate single bank of DDR3 (32-bit wide).
The module supports dual GbE and, dependent on FPGA code loaded; PCIe up to Gen3 (dual x4 or x8 lane), or dual SRIO, 10GbE or 40GbE on P1.
The unit is available in a range of temperature and shock/vib specifications per ANSI/VITA-47, up to V3 and OS2.
Key Features
Ø3U FPGA carrier for FPGA Mezzanine Card (FMC) per VITA-46 and VITA-57
ØXilinx Zynq-7000 FPGA in FFG-900 package (XC7Z100 or XC7Z045)
ØHigh-performance clock jitter cleaner
ØVHDL reference design with source code
ØProtocols such as PCIe, SRIO, 10GbE/40Gbe, etc. are FPGA programmable
ØCompatible with VadaTech and 3rd-party FMCs
